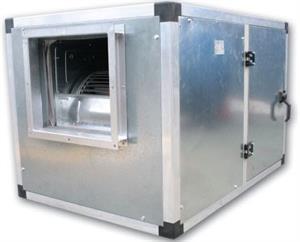

FHF Cabinet Box Fan

Specifications :

• Flow rates : up to 35.000 m³/h
• Pressure : up to 600 Pa
• Double inlet belt driven
• Max temperature values : -20 °C  / +60 °C
• Backward curved impeller
• Galvanized sheet steel structure
• Superior sound insulation owing to special design insulation plates used between the internal walls
• Anti-vibration mount in the unit
• IE3 high efficiency motors

On request :

• Single or double internal wall manufacturing upon request
• IE4 premium efficiency motors
• 60 Hz. models

Applications :

• Used in the facilities where very low operating noise is required
• Used in the areas where the fans are under direct effect of dust, humidity, rain, etc…
